Standalone Gantry Hoist System for Flexible Assembly
Machinery Assembly Workshop | Hebei, China
Project Overview

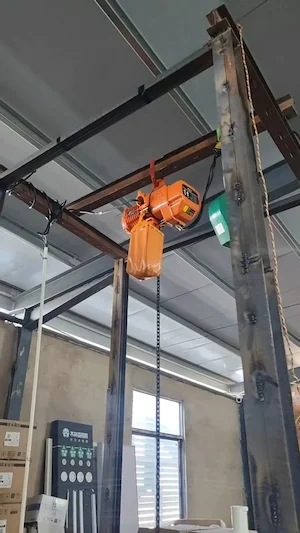

KYLIFT provided a high-efficiency 1-ton electric chain hoist integrated with a custom-engineered gantry frame for a machinery assembly workshop. This standalone lifting solution was specifically chosen to provide maximum flexibility in a workspace where permanent overhead structures were not an option, allowing for precision positioning during complex equipment repairs and assembly.
The Challenge: Evolving Shop Layouts
The client required a lifting solution that could adapt to changing production station configurations. A fixed crane would have limited their workflow, necessitating a mobile yet stable system capable of handling heavy mechanical components.
Custom Gantry Solution Specifications
This portable setup was built to industrial safety standards for indoor use:
- ✓ Hoist: 1T Electric Chain (Fixed Hook)
- ✓ Lift Height: 3 Meters (Optimized)
- ✓ Portability: Compatible with Manual Trolleys
- ✓ Safety: Dual Braking System (Mechanical & Motor)
- ✓ Rating: IP54 Dust & Splash Protection
Results & Operational Impact
✓ Operational Since 2022
The gantry system has significantly increased assembly speed by allowing technicians to position heavy parts with millimeter precision. Its standalone nature has saved the client thousands in structural modification costs.
Why This System Works
- Zero Structural Impact: No need for permanent I-beams or wall mounts.
- High Precision: Smooth lifting motion reduces part damage during assembly.
- Space Efficient: Compact footprint perfect for crowded assembly floors.
- Cost-Effective: A versatile asset that can be moved or sold if needs change.
Need a Lifting Solution Without the Fixed Cost?
Portable gantry systems offer industrial strength with total flexibility. Contact KYLIFT for a custom frame and hoist package.
