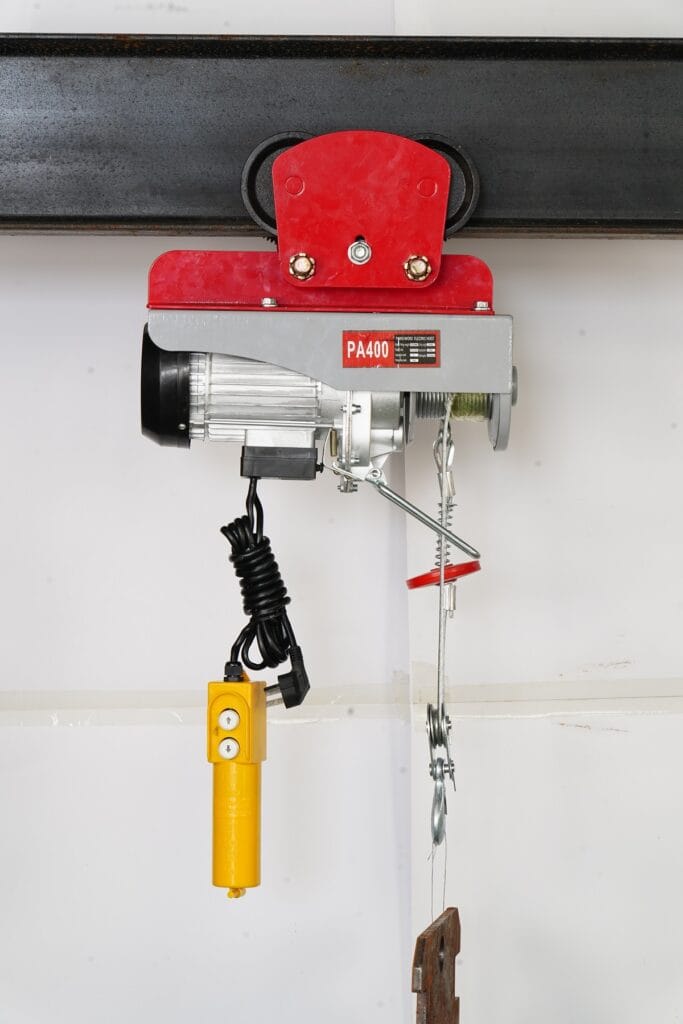

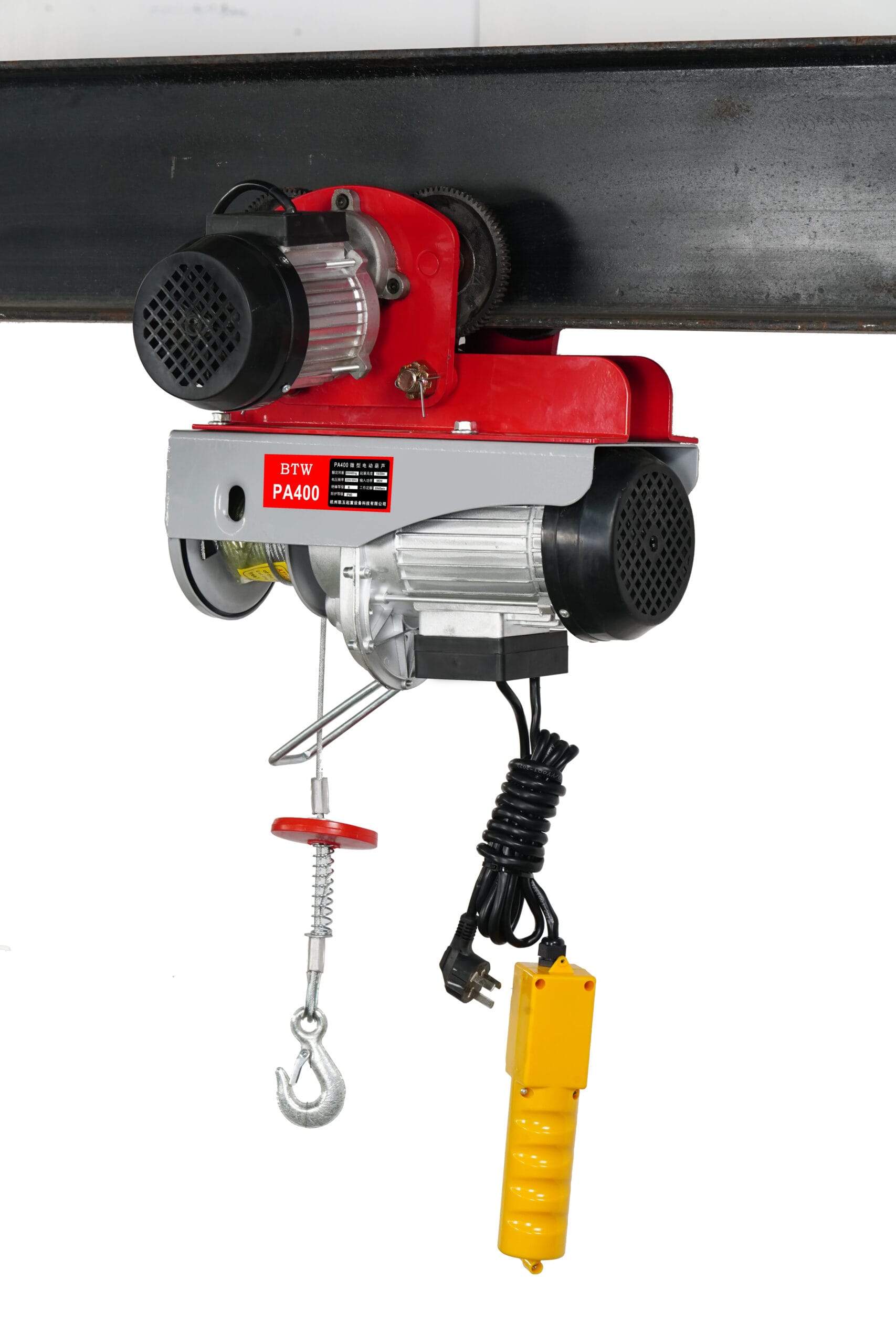

Running Type Mini Electric Hoist (200kg – 1200kg)
Integrated Overhead I-Beam Travel & Heavy Lifting Solution
Designed with an integrated electric trolley, the running type mini hoist moves seamlessly along I-beams (Monorail) for combined vertical lifting and horizontal transport. Engineered for heavy-duty industrial use in workshops, warehouses, and assembly lines.
- Dual-Function Mobility: Lift up to 1200kg and move horizontally along I-beams (16 m/min trolley speed).
- 100% Copper Motor: Ensures thermal resistance, continuous duty, and longer service life.
- Enhanced Safety: Built-in upper limit switch, thermal overload protection, and emergency control.
- Plug & Play Voltage: AC 220V/230V 50/60Hz standard residential & industrial power.
Need Factory Direct Pricing & OEM Customization?
Request a Wholesale QuoteProduct Overview & Operational Advantages
Integrated Trolley Mobility
Unlike fixed/stationary mini hoists, the running type comes integrated with a heavy-duty motorized trolley. It travels along I-beam tracks, enabling seamless material transfer across broad shop floors without requiring multiple lifting stations.
Industrial Safety Architecture
Equipped with an emergency stop switch, forced upper switch control, and thermal protection. The rugged cast-iron gearbox and alloy steel wire rope guarantee superior lifting reliability under demanding environments.
Flexible Capacity (Single / Double Hook)
Easily switch between Single Hook mode (for maximum lifting height and faster speed) and Double Hook mode (for doubled lifting load capacity up to 1200 kg).
I-Beam Compatibility
Fits standard monorail I-beams and track sizes (typically 10#-15# standard steel beams). Perfect for narrow workshop aisles and production line automation.
Technical Specifications & Models
| Model | Rated Capacity (Single / Double) | Lifting Speed (Single / Double) | Lifting Height (Single / Double) | Trolley Load Capacity | Trolley Speed | Power Supply |
|---|---|---|---|---|---|---|
| PA200 (Running Type) | 100 kg / 200 kg | 10 m/min / 5 m/min | 12 m / 6 m | 0.5 Ton | 16 m/min | AC 220V/230V 50/60Hz |
| PA400 (Running Type) | 200 kg / 400 kg | 10 m/min / 5 m/min | 12 m / 6 m | 0.5 Ton | 16 m/min | AC 220V/230V 50/60Hz |
| PA600 (Running Type) | 300 kg / 600 kg | 10 m/min / 5 m/min | 12 m / 6 m | 0.5 Ton | 16 m/min | AC 220V/230V 50/60Hz |
| PA800 (Running Type) | 400 kg / 800 kg | 8 m/min / 4 m/min | 12 m / 6 m | 1.0 Ton | 16 m/min | AC 220V/230V 50/60Hz |
| PA1000 (Running Type) | 500 kg / 1000 kg | 8 m/min / 4 m/min | 12 m / 6 m | 1.0 Ton | 16 m/min | AC 220V/230V 50/60Hz |
| PA1200 (Running Type) | 600 kg / 1200 kg | 8 m/min / 4 m/min | 12 m / 6 m | 1.0 Ton | 16 m/min | AC 220V/230V 50/60Hz |
Applications & Industry Use Cases
Factory Assembly Lines
Ideal for continuous movement of raw materials and heavy machinery parts along production tracks.
Warehouses & Logistics
Efficiently lifts pallets and cargo from ground level and transports them straight onto storage racks.
Auto Repair Shops
Perfect for pulling heavy car engines, transmissions, and chassis components across work bays.
Construction Sites
Installs on temporary steel beam structures to maneuver building supplies horizontally and vertically.
Frequently Asked Questions (B2B Buyers)
What size of I-beam is required for this running type hoist?
Our standard mini electric hoist trolleys are designed to fit standard I-beams and track widths ranging from 68 mm to 110 mm (Standard 10#-15# I-beams). Custom trolley widths can also be produced upon request.
Can we order customized voltage or plug types?
Yes. While standard voltage is 220V/230V 50Hz/60Hz single phase, we offer customized voltage options (110V, 240V) and plug configurations (US, EU, UK, AU standards) for bulk orders.
Do you support OEM branding and custom wire rope lengths?
As a direct manufacturer, we provide OEM color, logo sticker customization, extended handle cables, and specialized wire rope lengths up to 20–30 meters.
