Fixed Type Mini Electric Hoist (PA Series: 200kgā1200kg)
Industrial-grade 220V/230V single-phase mini wire rope hoist engineered for stationary overhead lifting in workshops, warehouses, and tight spaces.
- Capacity Range: 200 kg to 1200 kg (Single/Double hook configuration)
- 100% Pure Copper Motor: Ensures thermal resistance & extended continuous operation
- Enhanced Safety: Built-in upper limit switch, anti-rotation wire rope & emergency stop
- Plug & Play Power: Standard 220V/230V 50/60Hz household or workshop power supply
Need horizontal beam traversing capability? Check out our Running Type Mini Electric Hoist with Trolley.
Product Overview
The KYLIFT Fixed Type Mini Electric Hoist (PA Series) is designed specifically for stationary overhead lifting operations. Securely mounted on fixed scaffoldings, I-beams, or bracket arms, it delivers high efficiency without requiring complex installations. It is the perfect compact lifting equipment for auto repair garages, small manufacturing facilities, construction staging, and mezzanine warehousing.
Equipped with a high-tensile steel wire rope and an emergency safety braking mechanism, this hoist can be operated in both Single Hook (higher speed) and Double Hook (double capacity) modes, providing maximum versatility for daily material handling tasks.
Key Engineering Features
100% Pure Copper Stator Motor
Built with premium insulated copper wiring that prevents overheating during high-frequency lifting cycles, providing strong output torque and longer service life.

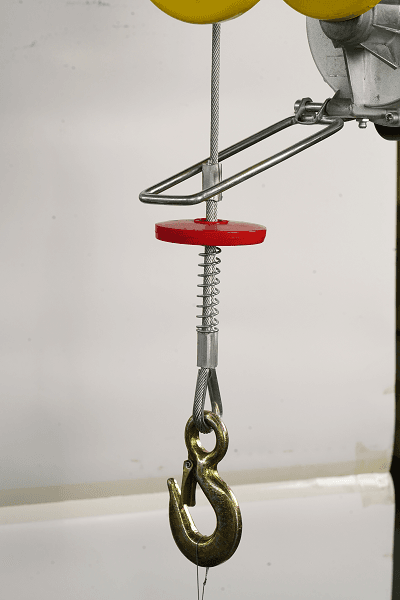

Automatic Upper Limit Switch
Includes an automatic shut-off limit bar that cuts power instantly when the hook reaches the top position, preventing rope jam or structural damage.
Anti-Rotation Steel Wire Rope
Constructed with galvanized heavy-duty braided steel wire rope that resists twisting and rotation, keeping hoisted loads stable during elevation.
Emergency Stop Remote Controller
Features an ergonomic handheld push-button pendant equipped with an instant Emergency Cut-Off Switch for maximum operator protection.
Single & Double Hook Versatility
Easily switch between standard single-rope operation for faster lifting speeds or double-rope hook setup for double lifting tonnage.
Heavy-Duty Forged Steel Hooks
High-strength safety hooks with 360-degree rotation capabilities and spring-loaded safety latches to prevent accidental load slippage.
Technical Specifications (PA Series)
| Model | Hook Mode | Rated Capacity (kg) | Lifting Speed (m/min) | Lifting Height (m) | Motor Power (W) | Packing Size (cm) | G.W / N.W (kg) |
|---|---|---|---|---|---|---|---|
| PA200 | Single Hook | 100 kg | 10 m/min | 12 m | 510W | 39 Ć 29 Ć 24 | 21 / 20 kg |
| Double Hook | 200 kg | 5 m/min | 6 m | ||||
| PA400 | Single Hook | 200 kg | 10 m/min | 12 m | 950W | 47 Ć 27 Ć 34 | 35 / 34 kg |
| Double Hook | 400 kg | 5 m/min | 6 m | ||||
| PA800 | Single Hook | 400 kg | 8 m/min | 12 m | 1300W | 39 Ć 37 Ć 27 | 37 / 35 kg |
| Double Hook | 800 kg | 4 m/min | 6 m | ||||
| PA1200 | Single Hook | 600 kg | 8 m/min | 12 m | 1900W | 54.5 Ć 26 Ć 32 | 31 / 29 kg |
| Double Hook | 1200 kg | 4 m/min | 6 m |
Target Applications & Use Cases
Due to its light net weight, quick installation bracket, and high torque output, the KYLIFT Fixed Mini Hoist is widely utilized across:
- Small Workshops & Maintenance Shops: Perfect for lifting engine blocks, machinery parts, and heavy tools onto workbenches.
- Warehouses & Mezzanine Levels: Vertically transporting inventory boxes between ground floors and mezzanine storage racks.
- Construction & Renovation Sites: Hoisting building supplies, concrete buckets, and tiles without heavy crane equipment.
- Commercial & Agricultural Handling: Ideal for grain stores, small farms, and food processing plants.
Looking for heavier industrial duty cycles? Explore our Single Phase Electric Chain Hoists or KCD Electric Winches.
Frequently Asked Questions
1. What is the difference between single hook and double hook operation?
In single hook mode, the wire rope drops directly from the drum, offering faster lifting speeds (up to 10 m/min) and maximum lifting height (12 meters). In double hook mode, the wire rope passes through an additional pulley hook, doubling the total lifting capacity while cutting the speed and lifting height by half (6 meters).
2. Can this mini electric hoist be customized for OEM orders?
Yes! As a direct manufacturer operated by Hebei Shoupai Hoisting Machinery Co., Ltd., KYLIFT offers complete OEM/ODM solutions, including custom voltage/frequency (e.g., 110V/220V/240V), custom wire rope lengths, custom body color, brand sticker labeling, and tailored packaging for wholesale distributors.

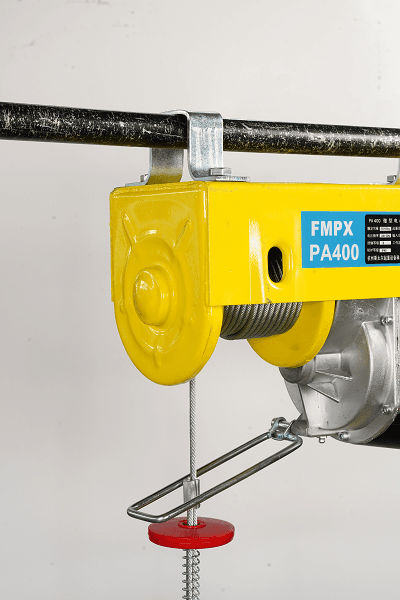

3. How is the fixed mini hoist mounted?
Each fixed mini hoist comes standard with heavy-duty mounting brackets (U-bolts/clamps) that can easily be secured around standard square tubing, fixed round pipes, or steel beam frames.
