5 Ton Electric
Chain Hoist (5000kg)
The KYLIFT 5000kg Series is engineered for high-duty cycles in steel plants, shipyards, and heavy manufacturing. Designed as a heavy-duty powerhouse in our extensive lineup of electric chain hoists, it ensures absolute safety and long-term endurance under full load conditions.
Protection
Compare 5T Configurations
We offer two primary configurations for 5000kg lifting to match your workshop space.

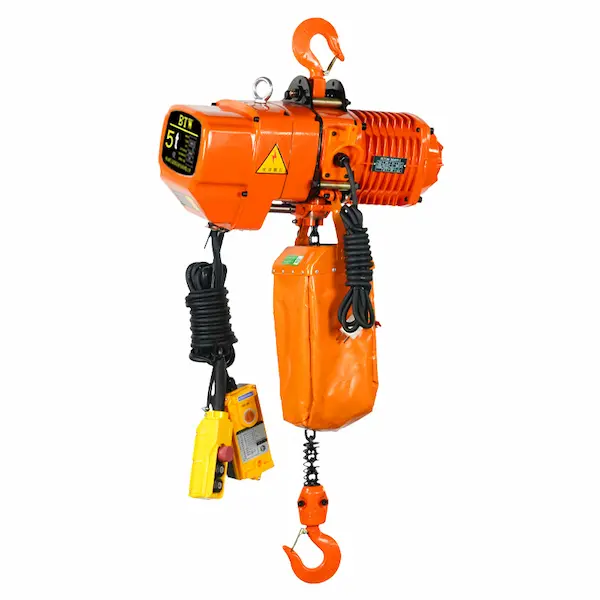

Single Chain Model
Fast lifting speed (~2.7m/min). Ideal for high-efficiency assembly lines where time is critical.
11.2mm FEC Chain

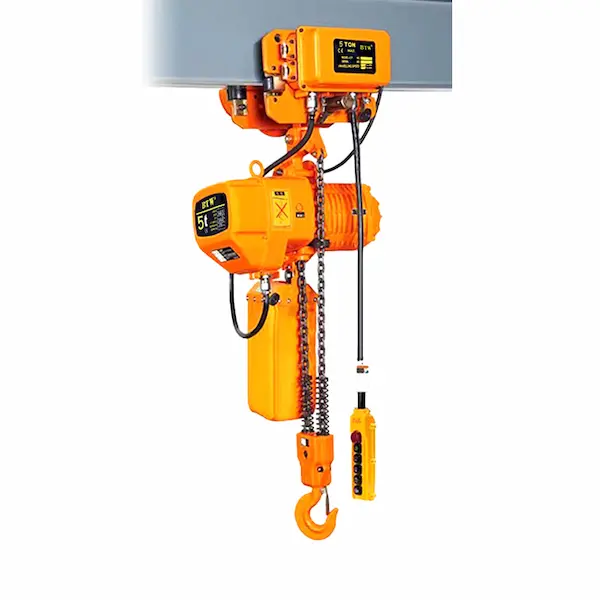

Double Chain Model
Compact low-headroom design. Best for facilities with limited vertical space and heavy-duty stability.
Dual Chain Fall SystemTechnical Specifications
| Parameters | Single Chain (5T) | Double Chain (5T) |
|---|---|---|
| Lifting Speed (m/min) | 2.7 | 1.3 |
| Motor Power (kW) | 3.0 | 3.0 |
| Chain Spec (mm) | ø11.2 | ø10.0 × 2 |
| Standard Voltage | 380V-440V / 3P | 380V-440V / 3P |

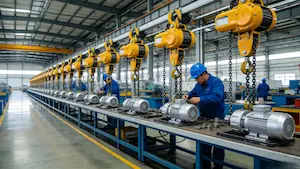

100% Load Tested Factory
Every 5-ton unit undergoes rigorous fatigue and overload testing before leaving our facility.
Why Choose KYLIFT 5T Hoists
- ✔ Electromagnetic Brake: Instant braking during power failure for maximum operator safety.
- ✔ Phase Protection: Automatically cuts power and prevents lifting if the phase connection is reversed.
- ✔ Bespoke Solutions: As a leading electric hoist manufacturer, we support custom lifting heights (up to 50m), custom colors, and specialized motorized trolley widths for local B2B distributors.
Support & Logistics
We understand the extreme urgency of industrial projects. Our 5T heavy industrial models are usually in stock or have a rapid lead time of 7-10 days.
FAQ
What voltage is required for the 5-ton hoist?
We strongly recommend Three-Phase 380V/415V/440V power supply grids. This ensures continuous thermal stability for the high-torque motor required to lift 5000kg safely.
Can I get a motorized trolley for this 5T model?
Yes. We provide fully integrated, heavy-duty motorized trolleys with adjustable widths to fit varying I-beams and H-beams. Dual-speed travel options are also available for precise industrial positioning.
Ready to Upgrade Your Lifting Power?
Contact our expert B2B engineering team today for 5T technical drawings, formal wholesale pricing, and customized configuration options.
Request 5T Quote NowAverage response time: 2 hours
