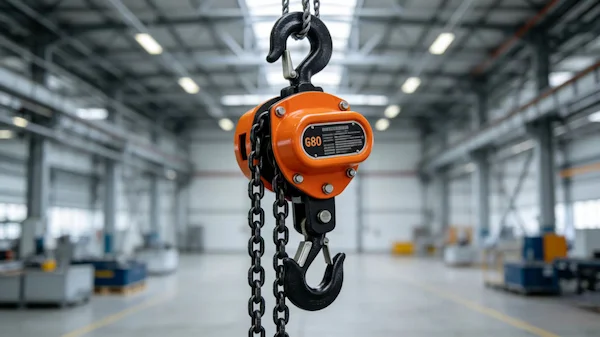

Industrial Manual Chain Hoists
Professional Grade Lifting Solutions. Browse our full catalog for high-performance chain blocks.
Superior Lifting Performance
Kylift’s manual chain hoists are engineered for heavy-duty applications where power is not available. Whether you need a compact 1-ton unit or a heavy industrial 50-ton block, our gear systems deliver smooth, controlled operation every time.

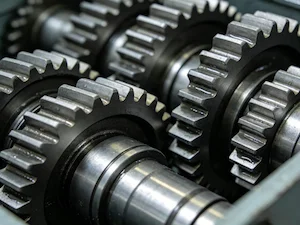

Superior Gear Efficiency
Features precision-cut spur gears and a double-pawl brake system for smooth lifting with minimal manual effort.
G80 High-Tensile Chain
Equipped with Grade 80 heat-treated alloy steel load chain, providing exceptional durability and resistance to wear.
360° Swivel Hooks
Drop-forged carbon steel hooks with safety latches, designed to bend slowly under overload rather than breaking.
Select by Lifting Capacity
View detailed specifications for our most popular tonnage models:
Technical Specifications
| Capacity (tons) | Standard Lift (m) | Chain Diameter (mm) | Effort to Lift Max Load (N) | Product Link |
|---|---|---|---|---|
| 0.5 | 3 | 6 | 221 | View Details |
| 1.0 | 3 | 6 | 284 | 1t Specs |
| 2.0 | 3 | 8 | 335 | 2t Specs |
| 3.0 | 3 | 8 (Double Fall) | 360 | 3t Specs |
| 5.0 | 3 | 10 (Double Fall) | 414 | 5t Specs |
Advanced Overload Protection
Safety is our priority. Kylift manual hoists can be fitted with an optional **overload protection system**. This factory-set slip clutch prevents the hoist from lifting loads significantly beyond its rated capacity.
- ✓ Reduces maintenance costs caused by misuse.
- ✓ Enhances structural longevity.
- ✓ Complies with international site safety regulations.
Why Choose Kylift
Beyond providing hardware, we deliver peace of mind through engineering excellence.
Dual-Pawl Safety
Our braking systems utilize a dual-pawl design, ensuring that even if one fails, the load remains securely held.
150% Proof Tested
Every single unit undergoes a static load test at 1.5 times its rated capacity before leaving our facility.
Precision Casting
We use high-grade alloy steel housing to protect internal components from harsh construction environments and impacts.
Global Compliance
Certified to CE, GS, and ISO standards, making our hoists ready for project sites across Europe, America, and Asia.
